Station holes needed for the 11x13" and 13x16" Fixtures

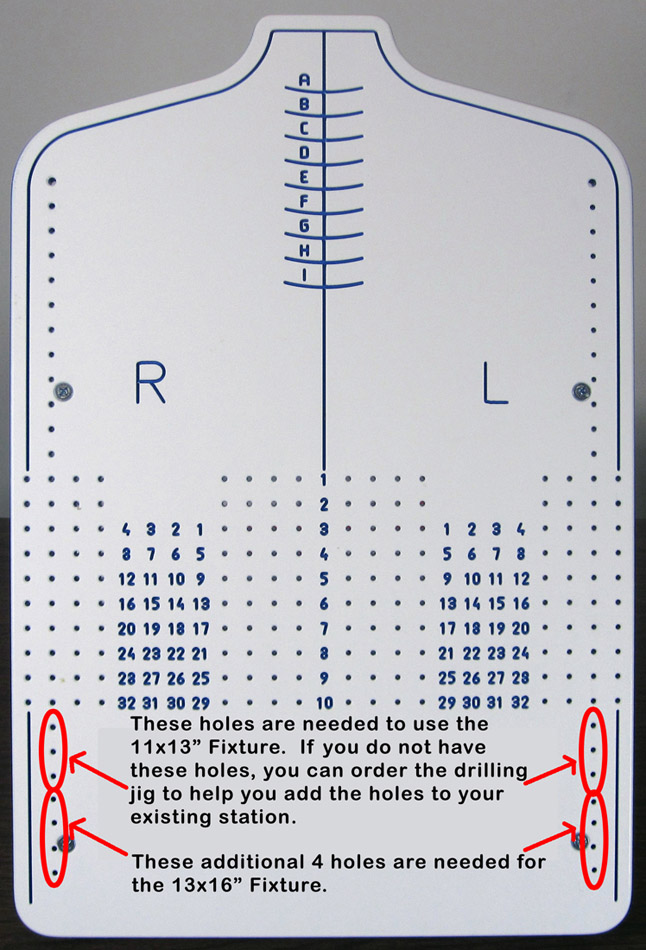

To use the 11x13" fixture you will need the 3 holes pictured on the left and right side of the lower part of the station, the 13x16" also needs the 4 holes below the 11x13" holes. If you do not have these holes, order the drilling jig when you order the fixture. The drilling jig will locate the holes on your station and allow you to add these holes easily. The jig also comes with the correct size drill bit.

Click here for PDF instructions
for using the drilling jig

The instructions above show a clear jig for drilling the holes in the station. This drill jig is now
incorporated into the adjustable fixture so that it does not have to be purchased separately.


If you have any questions please contact us at
1-800-900-0741 ext 1 for sales and support
